from This Compact,
Document-Savvy Performer

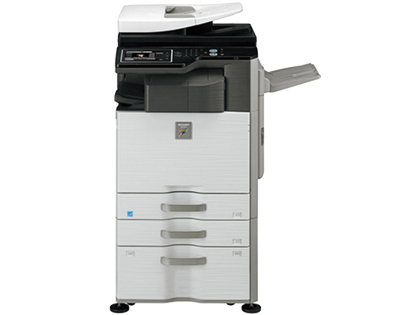

This full-color A3 solution packs the four-in-one convenience of fast, high-quality copying and network printing, handy network scanning, and a B/W fax option into one energy- and space-saving MFP. For operational efficiency, there’s a high-speed 100-sheet Reversing Single Pass Feeder, an optional 500 + 2,000-sheet large-capacity paper tray, and the Sharp OSA (Open Systems Architecture) development platform. To safeguard office communications, standard-equipped security functions* provide encrypting/erasing of internally stored data, and the Data Security Kit option brings added protection.
*Contact a Sharp customer representative for details on activating these security functions.
Breathtaking Image Quality

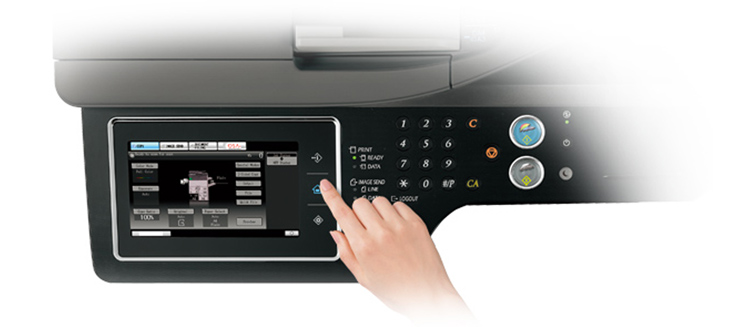

Sharp’s second-generation Mycrostoner-HG (High Grade) and an improved imaging system combine to allow the full spectrum of color reproduction in crisp, sharp detail. And because the MX-2616N/3116N is so easy to operate, breathtakingly high-quality images can be had with just the touch of a finger.
Key Features
- Sharpdesk Mobile
- Style, Function, and Ease of Use
- Superb Image Quality
- Highly Productive Operation
- Enhanced Usability
- Advanced Functionality
- Multi-Layered Security Solutions
- Environmentally Advanced Design
| Type | Desktop | |
|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1: Max. 31/26 ppm
A3 (11″ x 17″): Max. 15/14 ppm |
|
| Control panel display | 7.0-inch color LCD touchscreen | |
| Paper size | Max. A3 wide (12″ x 18″), min. A5 (5 1/2″ x 8 1/2″)*2 | |
| Paper capacity
(80 g/m2) |
Standard | 600 sheets
(500-sheet tray and 100-sheet multi-bypass tray) |
| Maximum | 3,100 sheets
(600 sheets & optional 500 + 2,000-sheet tray) |
|
| Paper weight | Tray | 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) |
| Multi-bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Warm-up time*3 | 18 sec. | |
| Memory | Standard | 3GB (copy/print shared) 320GB HDD*4 |
| Option | 2GB | |
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | |
| Power consumption | Max. 1.84 kW (220 to 240V), max. 1.44 kW (100 to 120V) | |
| Dimensions (W x D x H) | 608 x 642 x 834 mm (23 15/16″ x 25 9/32″ x 32 53/64″) | |
| Weight (approx.) | 220 to 240V: 76.2 kg (168 lbs)
100 to 120V: 75.6 kg (166.7 lbs) |
|
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*5 | MX-3114N | Full color: 7.9 sec. B/W: 5.8 sec. |
| MX-2614N | Full color: 8.1 sec. B/W: 5.9 sec. | |
| Continuous copy | Max. 999 copies | |
| Resolution | Scan (color) | 600 x 600 dpi |
| Scan (B/W) | 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi | |
| 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | ||
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25 to 400% (25 to 200% using RSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel), pull scan (TWAIN-compliant application) | |
|---|---|---|
| Scan speed*6 | Color & B/W | Max. 50 originals/min. |
| Resolution | Push scan | 100, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting*7 |
|
| File formats | TIFF, PDF, encrypted PDF, JPEG*8, XPS, PDF/A | |
| Scanner utility | Sharpdesk | |
| Scan destinations | Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory | |
| Document filing capacity*9 | Main and custom folders: 20,000 pages or 3,000 files |
|---|---|
| Quick file folder: 10,000 pages or 1,000 files | |
| Stored jobs*10 | Copy, print, scan, fax transmission |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Confidential storage | Password protection |
| Resolution | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
|---|---|---|
| Interface | USB 2.0, 10Base-T/100Base-TX/1000Base-T | |
| Supported OS*11 | Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10 | |
| Network protocols*11 | TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk) | |
| Printing protocols*12 | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP | |
| PDL | Standard | PCL 6 emulation |
| Option*13 | PostScript® 3™ emulation, XPS | |
| Available fonts | 80 fonts for PCL, 136 fonts for PostScript 3 emulation | |
| Compression method | MH/MR/MMR/JBIG |
|---|---|
| Communication protocol | Super G3/G3 |
| Transmission time | Less than 3 seconds*14 |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) |
| Memory | 1GB (built-in) |
| Greyscale levels | Equivalent to 256 levels |
