Outstanding Eco Performance—
Your Ideal Partner in Growth

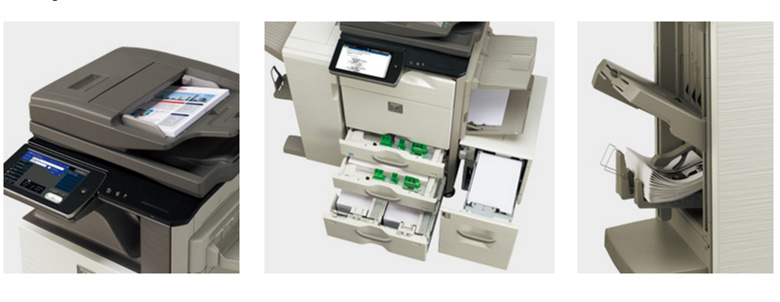

Along with multifunction efficiency—including full-color network scanning—this B/W A3 solution offers advanced environmental performance and easy expandability. Flexible system configurations allow the MX-M364N/M464N/M564N to accommodate nearly any type of business. There’s a space-efficient inner finisher for workplaces with limited room, a 4,000-sheet finisher for offices handling high-volume jobs, and saddle stitch finishers for businesses requiring complex document finishing, like that needed for pamphlet making.
The MX-M364N/M464N/M564N also supports the Sharpdesk Mobile print/scan application for conducting business on the go and ensures the reliable safeguarding of business communications through built-in and add-on security functions.
Leading the way to document productivity is a 150-sheet high-speed DSPF (duplex single pass feeder) that gives the MX-M364N/M464N/M564N quick scanning speeds of up to 85 opm* for one-sided originals and 170 opm* for two-sided originals—in both color and B/W. For added convenience, an optional 500 + 2,000-sheet paper drawer increases the MX-M364N/M464N/M564N’s total paper capacity to 6,600 sheets. And a variety of finishing options, including a 4,000-sheet A3 saddle stitch finisher, makes for attractive and efficient document finishing.
The MX-M364N/M464N/M564N is equipped with a 7.0-inch WVGA touchscreen color LCD that provides easy navigation of MFP functions and settings. The LCD also shows thumbnail displays and data file previews, raising the bar on user friendliness. A retractable QWERTY keyboard option offers added convenience.
- Eco Friendliness
- Highly Productive Operation
- Enhanced Usability
- Advanced Functionality
- Multi-Layered Security Solutions
- Environmentally Advanced Design
| Type | Desktop | |
|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1: Max. 56/46/36 ppm*2
A3 (11″ x 17″): Max. 26/22/17 ppm |
|
| Control panel display | 10.1-inch color LCD touchscreen | |
| Paper size | Max. A3 wide (12″ x 18″)*3, min. A5 (5 1/2″ x 8 1/2″)*4 | |
| Paper capacity
(80 g/m2) |
Standard | 600 sheets
(500-sheet tray and 100-sheet multi-bypass tray) |
| Maximum | 6,600 sheets
(600 sheets & optional 500 + 2,000-sheet tray and 3,500-sheet tray) |
|
| Paper weight*5 | Tray | 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) |
| Multi-bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Warm-up time*6 | 12 sec. | |
| Memory | Standard | 3GB (copy/print shared) 320GB HDD*7 |
| Option | 1GB | |
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | |
| Power consumption | Max. 1.84 kW (220 to 240V), max. 1.44 kW (100 to 127V) | |
| Dimensions (W x D x H) | 618 x 713 x 843 mm (24 21/64″ x 28 5/64″ x 33 3/16″) | |
| Weight (approx.) | MX-M565N/M465N: 78 kg (171.9 lbs)
MX-M365N: 77 kg (169.8 lbs) |
|
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*8 | 3.7/3.9/4.5 sec. | |
| Continuous copy | Max. 999 copies | |
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi |
| 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | ||
| Gradation | Scan | 256 levels |
| 256 levels (equivalent) | ||
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel), pull scan (TWAIN-compliant application) | |
|---|---|---|
| Scan speed*9 | color & B/W | One-sided: Max. 85 originals/min.
Two-sided: Max. 170 originals/min. |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting |
|
| File formats | TIFF, PDF, PDF/A, encrypted PDF, compact PDF*10, JPEG*11, XPS | |
| Scanner utility | Sharpdesk | |
| Scan destinations | Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory | |
| Document filing capacity*12 | Main and custom folders: 20,000 pages or 3,000 files |
|---|---|
| Quick file folder: 10,000 pages or 1,000 files | |
| Stored jobs*13 | Copy, print, scan, fax |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Confidential storage | Password protection |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
|---|---|---|
| Interface | USB 2.0, 10Base-T/100Base-TX/1000Base-T | |
| Supported OS | Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10 | |
| Network protocols | TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk) | |
| Printing protocols*14 | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP | |
| PDL | Standard | PCL 6 emulation, Adobe® PostScript® 3™ |
| Option | XPS*15 | |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | |
| Compression method | MH/MR/MMR/JBIG |
|---|---|
| Communication protocol | Super G3/G3 |
| Transmission time | Less than 3 seconds*16 |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) |
| Memory | 1GB |
| Greyscale levels | Equivalent to 256 levels |
